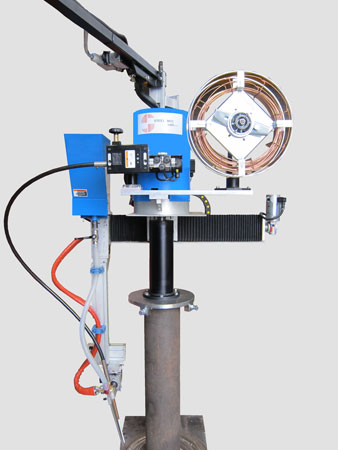

Circle welder

Is designed for single pass or multipass welding of couplings or nozzles (such welding of nozzles in vessels, domed heads or flat surfaces).
The machine is equipped with : wire feeder, welding control, drive motor, speed control for rotation, horizontal and vertical adjusting slide, rise and fall cam, gun and cable assembly, burnback control, 15 m of control cable, and wire reel adaptor for spools. Welding control has wire feed speed (amperage control), wire direction and weld switches.
Able to weld diameter from 200 mm up to 1200 mm.
Available also light version weight up to 180 kg also with fully automatic welding process with PLC / CNC program .
